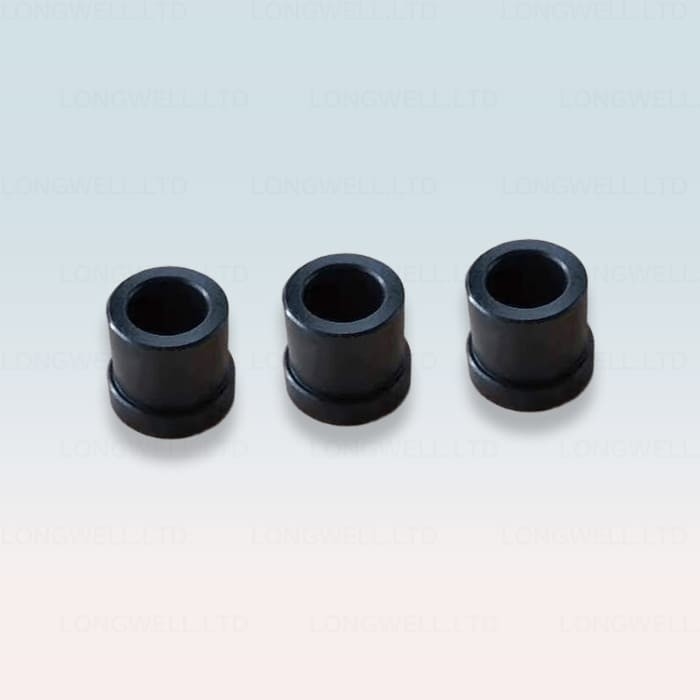

Honghua HHF1600 Mud Pump Parts Valve Guide Upper Wear Resistance Mud Pump Components

What is Honghua HHF1600 Mud Pump Valve Guide Upper?

Honghua HHF1600 Mud Pump Valve Guide Upper is installed in the inner chamber of the hydraulic cylinder ,for centering and positioning the suction valve body assembly.

Upper and lower valve guides are important parts for the fluid end of mud pump in oil drilling. The upper type acts as a connector of valve spring and valve cover inside the hydraulic cylinder. It plays a guiding role in valve operation. The lower one is a connector of valve spring and hydraulic cylinder inside the cylinder. It has the function of fixing and guiding the valve operation.

The material of Honghua HHF1600 Mud Pump Valve Guide Upper way is ZG35CrMo, and the inner sleeve is treated by 20CrMnTi carburization and quenching.

How does Honghua HHF1600 Mud Pump Valve Guide Upper work?

In most types of reciprocating engines, a valve guide is provided for each poppet valve in the cylinder head. Along with the valve spring, it serves to positively locate the valve so that it may make proper contact with the valve seat. A valve guide is a cylindrical piece of metal, pressed or integrally cast into the cylinder head, with the valve reciprocating inside it.

Guides also serve to conduct heat from the combustion process out from the exhaust valve and into the cylinder head where it may be taken up by the cooling system. Bronze is commonly used, as is steel; a balance between stiffness and wear on the valve is essential to achieve a useful service life.

The clearance between the inner diameter of Honghua HHF1600 Mud Pump Valve Guide Upper and the outer diameter of the poppet valve stem is critical for the proper performance of an engine. If there is too little clearance, the valve may stick as oil contaminants and thermal expansion become factors. If there is too much clearance, the valve may not seat properly and excessive oil consumption can occur.

Over time, the inner diameter of Honghua HHF1600 Mud Pump Valve Guide Upper and the outer diameter of the valve stem may become worn. In the 1980s, many U.S. production engine remanufacturers began reaming valve guides, rather than replacing them, as part of their remanufacturing process.

They found that by reaming all Honghua HHF1600 Mud Pump Valve Guide Uppers in a head to one standard size (typically 0.008 in. diametrically oversized), and installing remanufactured engine valves having stems that are also oversized, a typical engine head can be remanufactured in much less time.

Since the reaming process leaves Honghua HHF1600 Mud Pump Valve Guide Upper with a much better surface finish and shape than typical replacement guides, and since the oversize valves often have chrome plated stems, remanufacturers also discovered that valve train warranty issues are virtually eliminated.

Studies have been conducted which show that through the proper selection of the reamer and reaming process, valves guides can be quickly and efficiently reamed to a consistently repeatable size.
