Product Details
Place of Origin: China
Brand Name: LONGWELL
Certification: API-7K
Model Number: Oil Drilling Mud Pump
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Packaging Details: Plywood case/Iron pallet
Payment Terms: T/T 30%DP, balabce before ship
Supply Ability: 1000 PCS per Month
Temperature Rating: |
200°F |
Pressure Rating: |
5000 Psi |
Model: |

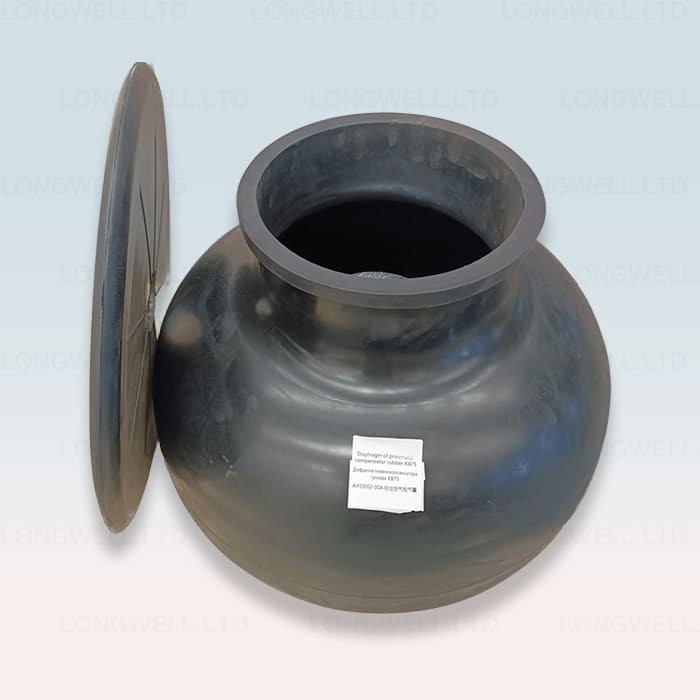

GH3161-27.03.00 11-3161-2703-00 |
Material: |
Rubber |
Installation Position: |
Between Mud Pump And Standpipe |
Usage: |
Oil |
Type: |
Piston Type |
Pressure: |
Low Pressure |
Connection Type: |
Flanged |
Certifications: |
API 7K, ISO 9001:2015 |
Structure: |
Piston Pump |
Warranty: |
1 Year |
BOMCO: |
F800/1000/1300/1600/1600HL |
HONGHUA: |
3NB-800/1000/1300/1600F |
HRSB: |
RS-F800/1000/1300/1600 |
INGZHOU: |
QF-1300/1600 |
LS-NOW: |
3NB1300C/1600 |
NOV: |
12-P-160 14-P-220 |
WeatherFord: |
MP-10/16 |
GD: |
PZ-7/8/9/10/11 |
EMSCO: |
FB-1300/1600 |
RUSSIAN: |
UNBT-950/1180L UNB-600 8T650 |
Temperature Rating: |
200°F |
Pressure Rating: |
5000 Psi |
Model: |
GH3161-27.03.00 11-3161-2703-00 |
Material: |
Rubber |
Installation Position: |
Between Mud Pump And Standpipe |
Usage: |
Oil |
Type: |
Piston Type |
Pressure: |
Low Pressure |
Connection Type: |
Flanged |
Certifications: |
API 7K, ISO 9001:2015 |
Structure: |
Piston Pump |
Warranty: |
1 Year |
BOMCO: |
F800/1000/1300/1600/1600HL |
HONGHUA: |
3NB-800/1000/1300/1600F |
HRSB: |
RS-F800/1000/1300/1600 |
INGZHOU: |
QF-1300/1600 |
LS-NOW: |
3NB1300C/1600 |
NOV: |
12-P-160 14-P-220 |
WeatherFord: |
MP-10/16 |
GD: |
PZ-7/8/9/10/11 |
EMSCO: |
FB-1300/1600 |
RUSSIAN: |
UNBT-950/1180L UNB-600 8T650 |
Suction dampener is a very effective aid for improving suction performance and eliminating fluid pulsations in the suction line, which results in a smoother flow in the discharge line.
The mounting for KB-75 pulsation dampener (1) is a flange with R-39 seal washer. Before installing dampener, thoroughly clean ring groove and ring, and after setting dampener into place, tighten the nut (8) with 950-1265N.m (700-935ft.lbs) torque. Tighten nuts in a criss-cross order.
The discharge pulsation dampener is only allowed to charge nitrogen or air. No inflammable and explosive gases are allowed such as oxygen, hydrogen etc.
When stopping the pump check if the pre-charging pressure of discharge pulsation dampener meets the operational requirements.
