Home > products > Mud Pump Piston Rod > Customized RSF Mud Pump Pony Rod RS11309.04.01 Cast Iron Chrome Plating

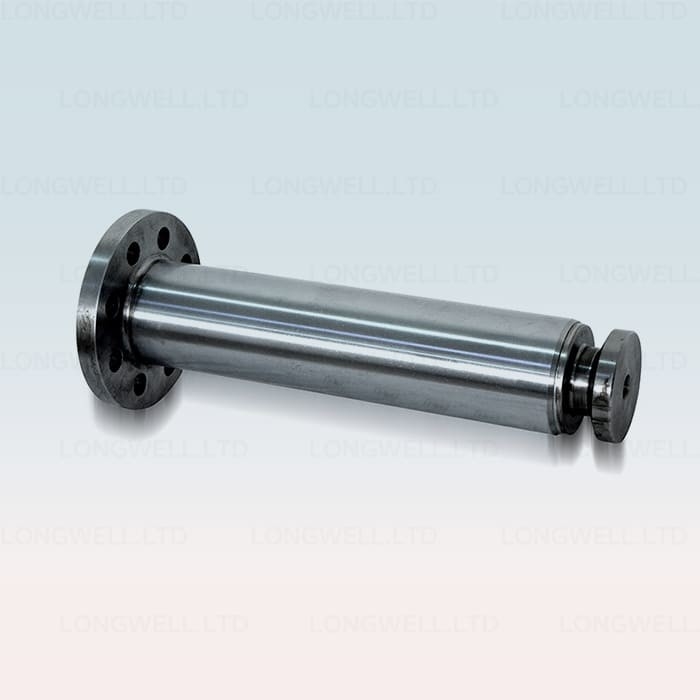

Customized RSF Mud Pump Pony Rod RS11309.04.01 Cast Iron Chrome Plating

Product Details

Place of Origin: China

Brand Name: LONGWELL

Certification: API-7K

Model Number: Oil Drilling Mud Pump

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Packaging Details: Plywood case/Iron pallet

Payment Terms: T/T 30%DP, balabce before ship

Supply Ability: 1000 PCS per Month

Get Best Price
Highlight:

Customized Mud Pump Pony Rod

,

Cast Iron Mud Pump Pony Rod

,

Chrome Plating Mud Pump Accessories

Material:
Alloy Steel
Tolerance:
±0.02mm
Diameter:
Customized
Wear Resistance:
Excellent
Pressure Rating:
Up To 7500 Psi
Temperature Rating:
Up To 250°F
Yield Strength:
High
Heat Treatment:
Quenching And Tempering
Surface Treatment:
Chrome Plating
Service Life:
Long
Tensile Strength:
Min. 1000 MPa
Hardness:
HRC 55-62
Length:
Customized
Size:
Customized
Impact Strength:
High
BOMCO:
F800/1000/1300/1600/1600HL
HONGHUA:
3NB-800/1000/1300/1600F
HRSB:
RS-F800/1000/1300/1600
INGZHOU:
QF-1300/1600
LS-NOW:
3NB1300C/1600
NOV:
12-P-160 14-P-220
WeatherFord:
MP-10/16
GD:
PZ-7/8/9/10/11
EMSCO:
FB-1300/1600
RUSSIAN:
UNBT-950/1180L UNB-600 8T650
Material:
Alloy Steel
Tolerance:
±0.02mm
Diameter:
Customized
Wear Resistance:
Excellent
Pressure Rating:
Up To 7500 Psi
Temperature Rating:
Up To 250°F
Yield Strength:
High
Heat Treatment:
Quenching And Tempering
Surface Treatment:
Chrome Plating
Service Life:
Long
Tensile Strength:
Min. 1000 MPa
Hardness:
HRC 55-62
Length:
Customized
Size:
Customized
Impact Strength:
High
BOMCO:
F800/1000/1300/1600/1600HL
HONGHUA:
3NB-800/1000/1300/1600F
HRSB:
RS-F800/1000/1300/1600
INGZHOU:
QF-1300/1600
LS-NOW:
3NB1300C/1600
NOV:
12-P-160 14-P-220
WeatherFord:
MP-10/16
GD:
PZ-7/8/9/10/11
EMSCO:
FB-1300/1600
RUSSIAN:
UNBT-950/1180L UNB-600 8T650
Customized RSF Mud Pump Pony Rod RS11309.04.01 Cast Iron Chrome Plating

What is RSF Mud Pump Expendables Extension Rod?


The intermediate rod, also called the intermediate rod, is the key part at the boundary between the power end and the hydraulic end, and is an important part of connecting the crosshead and the piston rod. Its function is to transfer the power to the hydraulic end.


One end of the utility model is connected with a crosshead, the other end is connected with a piston rod through a clamp, and the outer circular surface of the utility model is equipped with a packing box assembly.



Customized RSF Mud Pump Pony Rod RS11309.04.01 Cast Iron Chrome Plating 0



In the reciprocating motion, the outer circle of the intermediate rod and the seal in the packing box rub against each other.


In order to ensure the wear resistance, the outer surface of the intermediate rod is plated with hard chromium.


The extension rod is an important parts transporting the power from the driving end to the hydraulic end.



Customized RSF Mud Pump Pony Rod RS11309.04.01 Cast Iron Chrome Plating 1


What is the material of RSF Mud Pump Expendables Extension Rod?


The extension rod is made of premium alloy steel through unique manufacturing process and advanced technology.Its mechanical property is improved after heat treatment.


The surface is smooth,wear-resistant and anti-corrosive after chrome plating and accurate grinding.


The material of the middle pull rod produced by our company is 35CrMo, and the surface is smooth after chrome plating, which greatly improves the wear resistance and corrosion resistance.


Our products have passed API 7K certification of American Petroleum Institute, and passed the certification of the third-party entity company of Rhine, Germany. The quality of our products has reached the international and domestic leading level, and won the praise of customers at home and abroad.



Customized RSF Mud Pump Pony Rod RS11309.04.01 Cast Iron Chrome Plating 2
