Product Details
Place of Origin: China
Brand Name: LONGWELL
Certification: API-7K
Model Number: Oil Drilling Mud Pump
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Packaging Details: Plywood case/Iron pallet
Payment Terms: T/T 30%DP, balabce before ship
Supply Ability: 1000 PCS per Month
Condition: |
New |
Case Material: |
Stainless Steel |
Connection Type: |
NPT |
Application: |
Conveying Mud And Flushing Fluids |
Scale Type: |
Dual Scale (psi/bar) |
Accuracy: |
+/- 1% Of Full Scale |
Operating Temperature: |
0-160°F |
Usage: |
Drill Rig |
Measurement Range: |
0-10,000 Psi |
BOMCO: |
F800/1000/1300/1600/1600HL |
HONGHUA: |
3NB-800/1000/1300/1600F |
HRSB: |
RS-F800/1000/1300/1600 |
INGZHOU: |
QF-1300/1600 |
LS-NOW: |
3NB1300C/1600 |
NOV: |
12-P-160 14-P-220 |
WeatherFord: |
MP-10/16 |
GD: |
PZ-7/8/9/10/11 |
EMSCO: |
FB-1300/1600 |
RUSSIAN: |
UNBT-950/1180L UNB-600 8T650 |
Condition: |
New |
Case Material: |
Stainless Steel |
Connection Type: |
NPT |
Application: |
Conveying Mud And Flushing Fluids |
Scale Type: |
Dual Scale (psi/bar) |
Accuracy: |
+/- 1% Of Full Scale |
Operating Temperature: |
0-160°F |
Usage: |
Drill Rig |
Measurement Range: |
0-10,000 Psi |
BOMCO: |
F800/1000/1300/1600/1600HL |
HONGHUA: |
3NB-800/1000/1300/1600F |
HRSB: |
RS-F800/1000/1300/1600 |
INGZHOU: |
QF-1300/1600 |
LS-NOW: |
3NB1300C/1600 |
NOV: |
12-P-160 14-P-220 |
WeatherFord: |
MP-10/16 |
GD: |
PZ-7/8/9/10/11 |
EMSCO: |
FB-1300/1600 |
RUSSIAN: |
UNBT-950/1180L UNB-600 8T650 |

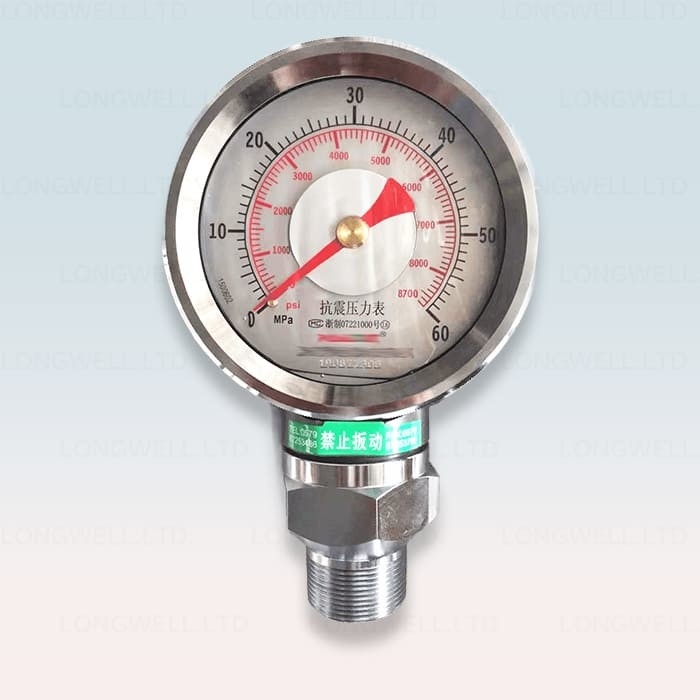

A Mud Pump Pressure Gauge BOMCO YK-150 should be installed on the pump discharge, and a high-low pressure alarm system should be utilized to address problem conditions that could lead to pump failure.
It is recommended that a pressure gauge be installed at the pump suction, and a lowsuction pressure alarm be mounted in the suction line.
However, do not install any metering device that causes a flow restriction on the suction piping. For full operating instructions and guidelines for this equipment, see the documentation provided by the manufacturer.
Ensure a Mud Pump Pressure Gauge BOMCO YK-150 is installed at the suction point, preferably with a thermometer and a low-pressure alarm.
Check the Mud Pump Pressure Gauge BOMCO YK-150 on the external lube oil filter (if utilized). If the differential between the gauges is greater than 15 psi when the pump is at operating temperature, clean the strainer and strainer magnets.
