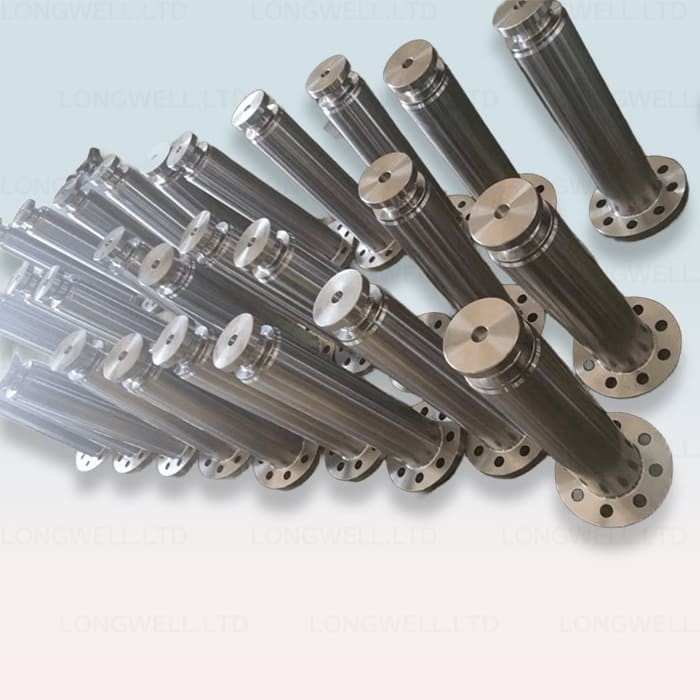

Fatigue Resistance Mud Pump Piston Rod

Name: Fatigue Resistance Mud Pump Piston Rod
Brand: Xian LongWell Machinery Equipment Co., LTD
SKU: Oil Drilling Mud Pump
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LONGWELL

Certification: API-7K

Model Number: Oil Drilling Mud Pump

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Packaging Details: Plywood case/Iron pallet

Payment Terms: T/T 30%DP, balabce before ship

Supply Ability: 1000 PCS per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Fatigue Resistance Mud Pump Piston Rod, Chrome Plating Mud Pump Piston Rod, Chrome Plating Mud Pump Accessories


Tolerance:	±0.02mm	Impact Strength:	High
Corrosion Resistance:	Salt Spray Test ≥ 1000 Hours	Tensile Strength:	≥800MPa
Working Temperature:	≤300℃	Material:	Alloy Steel
Package:	Carton, Wooden Case, Pallet	Application:	Oil And Gas Drilling
Surface Treatment:	Chrome Plating	Working Pressure:	≤35MPa
Wear Resistance:	≤0.1mm	Length:	Customized
Impact Toughness:	≥20J	Elongation:	≥10%
Hardness:	HRC 55-60	BOMCO:	F800/1000/1300/1600/1600HL
HONGHUA:	3NB-800/1000/1300/1600F	HRSB:	RS-F800/1000/1300/1600
INGZHOU:	QF-1300/1600	LS-NOW:	3NB1300C/1600
NOV:	12-P-160 14-P-220	WeatherFord:	MP-10/16
GD:	PZ-7/8/9/10/11	EMSCO:	FB-1300/1600
RUSSIAN:	UNBT-950/1180L UNB-600 8T650

Tolerance:	±0.02mm
Impact Strength:	High
Corrosion Resistance:	Salt Spray Test ≥ 1000 Hours
Tensile Strength:	≥800MPa
Working Temperature:	≤300℃
Material:	Alloy Steel
Package:	Carton, Wooden Case, Pallet
Application:	Oil And Gas Drilling
Surface Treatment:	Chrome Plating
Working Pressure:	≤35MPa
Wear Resistance:	≤0.1mm
Length:	Customized
Impact Toughness:	≥20J
Elongation:	≥10%
Hardness:	HRC 55-60
BOMCO:	F800/1000/1300/1600/1600HL
HONGHUA:	3NB-800/1000/1300/1600F
HRSB:	RS-F800/1000/1300/1600
INGZHOU:	QF-1300/1600
LS-NOW:	3NB1300C/1600
NOV:	12-P-160 14-P-220
WeatherFord:	MP-10/16
GD:	PZ-7/8/9/10/11
EMSCO:	FB-1300/1600
RUSSIAN:	UNBT-950/1180L UNB-600 8T650

Fatigue Resistance Mud Pump Piston Rod

What is Triplex Mud Pump Extension Rod?

The intermediate rod, also called the intermediate rod, is the key part at the boundary between the power end and the hydraulic end, and is an important part of connecting the crosshead and the piston rod. Its function is to transfer the power to the hydraulic end.

One end of the utility model is connected with a crosshead, the other end is connected with a piston rod through a clamp, and the outer circular surface of the utility model is equipped with a packing box assembly. In the reciprocating motion, the outer circle of the intermediate rod and the seal in the packing box rub against each other.

In order to ensure the wear resistance, the outer surface of the intermediate rod is plated with hard chromium.

The extension rod is an important parts transporting the power from the driving end to the hydraulic end.

Fatigue Resistance Mud Pump Piston Rod 0

What is the material of Triplex Mud Pump Extension Rod?

The extension rod is made of premium alloy steel through unique manufacturing process and advanced technology.Its mechanical property is improved after heat treatment.

The surface is smooth,wear-resistant and anti-corrosive after chrome plating and accurate grinding.

Fatigue Resistance Mud Pump Piston Rod 1

The material of the middle pull rod produced by our company is 35CrMo, and the surface is smooth after chrome plating, which greatly improves the wear resistance and corrosion resistance.

Our products have passed API 7K certification of American Petroleum Institute, and passed the certification of the third-party entity company of Rhine, Germany. The quality of our products has reached the international and domestic leading level, and won the praise of customers at home and abroad.

Fatigue Resistance Mud Pump Piston Rod 2
