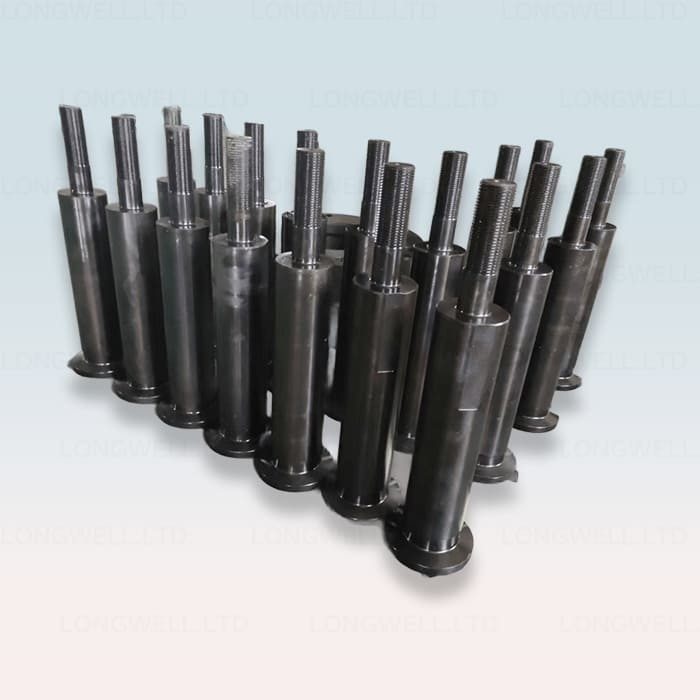

AH1001010516 Mud Pump Piston Rod

Name: AH1001010516 Mud Pump Piston Rod
Brand: Xian LongWell Machinery Equipment Co., LTD
SKU: Oil Drilling Mud Pump
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LONGWELL

Certification: API-7K

Model Number: Oil Drilling Mud Pump

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Packaging Details: Plywood case/Iron pallet

Payment Terms: T/T 30%DP, balabce before ship

Supply Ability: 1000 PCS per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                AH1001010516 Mud Pump Piston Rod, BOMCO Mud Pump Piston Rod, Customized Mud Pump Pony Rod


Application:	Oil And Gas Drilling	Yield Strength:	High
Material:	Alloy Steel	Length:	Customized
Impact Strength:	High	Elongation:	≥10%
Hardness:	HRC 55-60	Surface Treatment:	Chrome Plating
Connection:	Threaded	Processing:	Forging, CNC Machining
Tensile Strength:	≥800MPa	Tolerance:	±0.02mm
Package:	Carton, Wooden Case, Pallet	Corrosion Resistance:	Salt Spray Test ≥ 1000 Hours
Working Pressure:	≤35MPa	BOMCO:	F800/1000/1300/1600/1600HL
HONGHUA:	3NB-800/1000/1300/1600F	HRSB:	RS-F800/1000/1300/1600
INGZHOU:	QF-1300/1600	LS-NOW:	3NB1300C/1600
NOV:	12-P-160 14-P-220	WeatherFord:	MP-10/16
GD:	PZ-7/8/9/10/11	EMSCO:	FB-1300/1600
RUSSIAN:	UNBT-950/1180L UNB-600 8T650

Application:	Oil And Gas Drilling
Yield Strength:	High
Material:	Alloy Steel
Length:	Customized
Impact Strength:	High
Elongation:	≥10%
Hardness:	HRC 55-60
Surface Treatment:	Chrome Plating
Connection:	Threaded
Processing:	Forging, CNC Machining
Tensile Strength:	≥800MPa
Tolerance:	±0.02mm
Package:	Carton, Wooden Case, Pallet
Corrosion Resistance:	Salt Spray Test ≥ 1000 Hours
Working Pressure:	≤35MPa
BOMCO:	F800/1000/1300/1600/1600HL
HONGHUA:	3NB-800/1000/1300/1600F
HRSB:	RS-F800/1000/1300/1600
INGZHOU:	QF-1300/1600
LS-NOW:	3NB1300C/1600
NOV:	12-P-160 14-P-220
WeatherFord:	MP-10/16
GD:	PZ-7/8/9/10/11
EMSCO:	FB-1300/1600
RUSSIAN:	UNBT-950/1180L UNB-600 8T650

AH1001010516 Mud Pump Piston Rod

What is BOMCO Mud Pump Piston Rod?

The piston rod is connected to extension rod through clamp, the piston and piston rod are connected by piston nut.

Check if any abnormal sound exist at connection clamp between piston rod and extension rod. Tighten the clamp bolts or replace qualified clamp, piton rod or extension rod if any abnormal sound occurred.

BOMCO mud pump piston rod,AH1001010516,AH33001-05.21A,AH1301010516,AH36001-05,19A,AH33003-05,AH0000060105,

AH1001010516 Mud Pump Piston Rod 0

How to install BOMCO Mud Pump Piston Rod?

Dismantle the connection clamp between piston rod and extension rod, and crank mud pump to separate the extension rod from piston rod. Then use the lifting tool to hold liner inside.

There is no need to remove piston core from piston rod when replacing piston rubber. Replacing the rubber only needs to remove the retainer (circlip) and clamping plate at the front of piston core.

AH1001010516 Mud Pump Piston Rod 1
