O - Ring Φ190×3.55 Mud Pump Crosshead Gas Sealing For Hydraulic Cylinder Pistons

Product Details:
Place of Origin: China
Brand Name: YINDA
Certification: API 7K
Model Number: Triplex Mud Pump
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD/CNY
Packaging Details: Plywood case / Iron plate
Delivery Time: In stock
Payment Terms: T/T 30%DP, Balance before delivery
Supply Ability: In stock

Detail Information

Usage: Drill Rig Application: Conveying Mud And Flushing Fluids
Structure: Piston Pump Standard Or Nonstandard: Standard
Type: Mud Pump Product Name: Mud Pump
Oem: Applicable Condition: New
High Light:

crosshead bearing

,

mud pump fluid end

Product Description

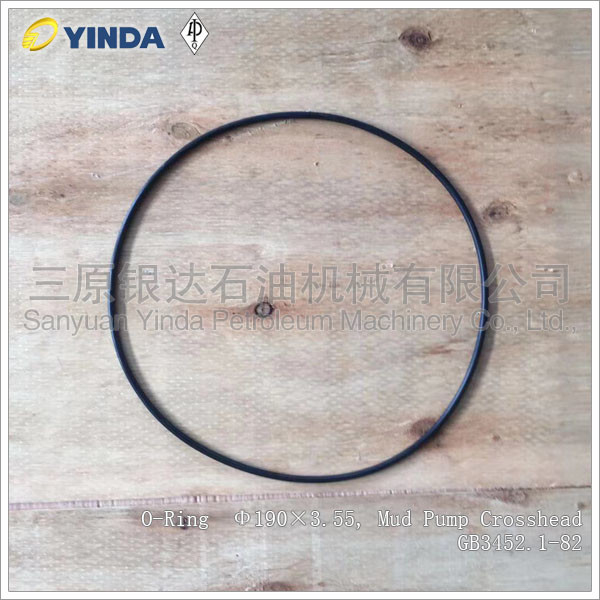

O-Ring Φ190×3.55, Mud Pump Crosshead GB3452.1-82 was used in Mud Pump corsshead.





The O-ring may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.



Static applications of O-rings may include fluid or gas sealing applications in which: (1) the O-ring is compressed resulting in zero clearance, (2) the O-ring material is vulcanized solid such that it is impermeable to the fluid or gas, and (3) the O-ring material is resistant to degradation by the fluid or gas.



O-rings come in a variety of sizes. Society of Automotive Engineers (SAE) Aerospace Standard 568 (AS568)[15] specifies the inside diameters, cross-sections, tolerances, and size identification codes (dash numbers) for O-rings used in sealing applications and for straight thread tube fitting boss gaskets. British Standard (BS) which are imperial sizes or metric sizes. Typical dimensions of an O-ring are internal dimension (id), outer dimension (od) and thickness / cross section (cs)



The World's Largest O-ring was produced in a successful Guinness World Record attempt by Trelleborg Sealing Solutions Tewkesbury partnered with a group of 20 students from Tewkesbury School. The O-ring once finished and placed around the Medieval Tewkesbury Abbey had a 364m circumference (approx 116m id) and a cross section of 7.2mm.





O - Ring Φ190×3.55 Mud Pump Crosshead Gas Sealing For Hydraulic Cylinder Pistons 0



Mud Pump Parts Model We Can Do



BOMCO

F-500

F-800

F-1000

F-1300

F-1600

F-1600HL

F-1600L

F-2200HL

Hong Hua

HHF-500

HHF-800

HHF-1300

HHF-1600

3NB-1600F

5NB-1600

5NB-2400



HRSB RSF-1300 RSF-1600



RG

RGF-800 RGF-1000 RGF-1300 RGF-1600



Lanzhou

3NB1000C

3NB1300C

3NB1600F

3NB1600L









EMSCO

F-500

F-800

F-1000

F-1300

F-1600

FD-1000

FC-2200

FB-1300

Gardner Denver

PAH

P7

P8/9

P10/11









National

7-P-50

8-P-80

9-P-100

10-P-130

12-P-160

14-P-200

14-P-220



Oilwell

A-850-PT

A-1100-PT

A-1400-PT

A-1700-PT









TSC

WF-500

WF-800

WF-1000

WF-1300

WF-1600

WF-2000

WF-2200



IDECO

T-500

T-800

T-1000

T-1300

T-1600







RUSSIA

UNBT-1180L

UNBT-950A

UNB-600















Metric O-rings are usually defined by the internal dimension x the cross section. Typical part number for a metric O-ring - ID x CS [material & shore hardness] 2x1N70 = defines this O-ring as 2mm id with 1mm cross section made from Nitrile rubber which is 70Sh. BS O-rings are defined by a standard reference.



O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, reliable and have simple mounting requirements. They have been tested to seal up to 5000 psi (35 megapascals) of pressure. The maximum recommended pressure of an O-ring seal depends on the seal hardness and gland clearance.



An O-ring, also known as a packing or a toric joint, is a mechanical gasket in the shape of a torus; it is a loop of elastomer with a round cross-section, designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface.

FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T is the most usual ways we are using.

3) What's the order procedure?
A: First we discuss order details, production details. Then we issue you an PI for your confirmation. You will be requested to do pr-e paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4) How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

5) How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.



More customer view:3-TSC WFU340 Pump Fluid End-yindapump.com.pdf
